4DOF Motion Simulators by MOTION-SIM

designed for simulation enthusiasts, racers, and pilots

roller coaster simulator

Imagine sitting in the cabin of a roller coaster, moving exactly as if you were on a real ride – feeling every twist, turn, and drop. A roller coaster motion simulator is a device designed to replicate these experiences as realistically as possible, without leaving the safety of your seat.

The simulator includes a motion platform that moves in various directions – up, down, forward, backward, and side-to-side – to accurately mimic the movements of a real roller coaster. When the simulator accelerates, it tilts backward; when it brakes, it tilts forward to simulate the forces acting on the person sitting in the seat. Precise movements of the platform create the sensations of gravity and g-forces you would experience on a real roller coaster.

The simulator also features screens or VR headsets that display a virtual roller coaster environment, along with sound effects that further enhance the sense of reality. The entire experience is designed to be as immersive and authentic as possible, so you feel like you’re on a real roller coaster without having to visit an amusement park.

It’s a great way to enjoy the excitement and adrenaline rush without the risks that come with actual riding.

MOTION-SIM roller coaster simulator

Our advanced roller coaster simulator features a state-of-the-art motion platform with four moving legs, delivering an incredibly lifelike experience. You get a full panoramic view through three 27" FullHD or three 27" UHD gaming LED displays, or a VR headset for the most realistic sensations. Every twist, turn, and drop feels authentic, making you feel like you're actually on a real roller coaster. The specially designed seat comes equipped with seat belts to ensure maximum enjoyment and safety throughout the ride.

This simulator can also be enjoyed passively, without the need for a steering wheel and pedals, using special holders just like a real roller coaster. This setup allows users to immerse themselves in the ride, experiencing all the excitement without the need to actively control the simulation. Whether you’re a thrill-seeker looking for an adrenaline rush or someone who simply wants to enjoy the ride, our roller coaster simulator offers a versatile and highly immersive experience that caters to all preferences.

authentic roller coaster simulation experience

Unlike traditional simulators, ours transports you beyond the screen. Feel the pulse of the ride, the thrill of the sky. Our advanced technology replicates the exact G-forces experienced in real roller coasters, creating a visceral connection that's more than just motion. Every bump, every turn, every adrenaline-fueled moment is brought to life in a way that's truly unforgettable.

Our simulator seamlessly integrates with your favorite games, receiving real-time data on the roller coaster's position, speed, and G-forces.

This allows us to recreate the precise movements and sensations of a real roller coaster and the gentle sway in curves like a real roller coaster.

the ultimate riding simulation


roller coaster simulator with custom bodywork

Feel the thrill of riding a real roller coaster with our state-of-the-art simulator. Each curve, drop, and loop is recreated with stunning realism, making you feel every twist and turn just as you would on a physical ride. Our advanced technology captures the essence of both gentle family coasters and heart-pounding steel coasters, offering a wide range of riding experiences to suit everyone’s taste.

Our simulator takes you on a journey through iconic tracks from around the world. Imagine racing through the twists and turns of famous roller coasters like those found in Cedar Point or Six Flags. Every detail, from the track design to the breathtaking drops, is meticulously crafted to bring the real-world experience to your fingertips. Feel the rush as you plunge down steep inclines or navigate sharp curves with the same level of immersive realism.

Not only can you experience real-world tracks, but our simulator also allows you to explore exciting virtual circuits. These virtual coasters are designed to push the limits of imagination, offering thrilling rides that you won’t find in any amusement park. Whether you’re diving through fantasy landscapes or speeding through futuristic cityscapes, the level of detail and immersion remains consistently high, providing an unforgettable adventure every time.

The immersive realism of our simulator doesn’t stop at visuals. Sophisticated sound design ensures you hear the roar of the coaster, the whoosh of the wind, and the clatter of wheels on tracks, enhancing the overall sensory experience. To further elevate the thrill, our simulator includes a windblower that blows air into your hair, amplifying the sensation of speed and making you feel like you’re really there, defying gravity and racing towards the horizon. With every ride, you’re transported into a world of excitement and adrenaline.

VR ready simulator

Experience the Ultimate Thrill with Our VR-Ready 4DOF Motion Simulators!

Get ready to dive into an extraordinary adventure! Our cutting-edge 4DOF motion simulators are fully VR-ready, compatible with top-tier VR headsets like Oculus, HTC, Valve Index, Pimax or Varjo. We are also preparing support for additional VR headsets to ensure an ever-expanding immersive experience.

See more details about VR here.

works with most popular roller coaster games

Our motion support is compatible with popular roller coaster games such as NoLimits 2 - roller coaster simulator and Epic Roller Coasters, providing a wide range of riding experiences from classic wooden coasters to modern steel coasters.

Specs & Brochures

supported games

Experience Your Favorite Titles With Real Motion

Our 4DOF motion simulators bring games to life with precise physical feedback, dynamic movement, and immersive forces that match the in‑game physics. Whether you race, fly, drift, haul cargo, or explore in VR, every supported title has been tested to deliver smooth, responsive, and realistic motion.

Roller Coasters

High-Intensity Motion Without Leaving Home

Experience drops, loops, and high‑G maneuvers with motion that matches the thrill of real roller coasters.

Supported titles include:

What you experience:

  • Strong vertical and lateral forces
  • Rapid directional changes
  • Full-body adrenaline

Want to Check a Specific Game?

If you want to know whether your favorite title works with our motion simulator, contact us at sim@motion-sim.cz.
We’ll verify compatibility — and if possible, add support for your game.

technical specification

  • operation conditions: normal dry indoor space
  • ambient temperature: +10 ÷ +30°C (+50 ÷ +86°F)
  • power voltage: 230 V AC ± 10% / 50 Hz
  • maximum current: 16 A
  • maximum (peak) consumption: 3,35 kW
  • mean consumption (motion on): 1000 ÷ 1400 W
  • mean consumption (motion off): 400 W
  • leakage protected earth current: 7 mA typ., 20 mA max.
  • maximum load (cockpit total): 300 kg (661 lbs)
  • maximum load (person in the cockpit): 120 kg (265 lbs)
  • overal weight: 350 kg (772 lbs)
  • operation dimmensions L x W: 1620 x 1790 mm (63.8 x 70.5 in)
  • transport dimmensions L x W: 1620 x 1380 mm (63.8 x 54.3 in)
  • height (cockpit in bottom position): 1670 mm (65.7 in)
  • maximum height (in motion): 2320 mm (91.3 in)
  • minimum safety circle diameter: 2500 mm (98.4 in)

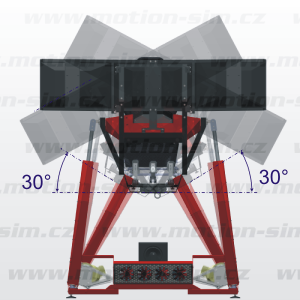

Roll ±29.9°, velocity 57°/s, acceleration up to 500°/s²

Roll ±29.9°
The motion system can tilt to the left and right up to 29.9 degrees from the neutral position. This simulates the rolling motion of a vehicle or aircraft.

Velocity 57°/s
This indicates that the roll can change at a speed of 57 degrees per second, which is the rate at which it can tilt.

Acceleration up to 500°/s²
The roll can accelerate up to 500 degrees per second squared, representing how quickly it can reach the desired tilt speed.

This ensures a responsive and realistic simulation experience, capturing rapid changes in motion.

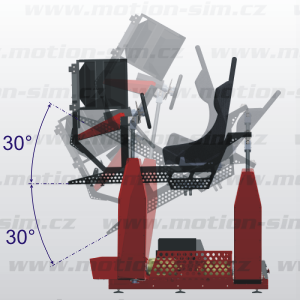

Pitch +31.4° / -31.1°, velocity 66°/s, acceleration up to 500°/s²

Pitch +31.4° / -31.1°
This indicates the simultor can tilt upwards by +31.4 degrees and downwards by -31.1 degrees from a neutral position. Pitch refers to the movement of the simulator's nose up or down.

Velocity 66°/s
The rate at which the pitch angle changes is 66 degrees per second, meaning how quickly the simulator can tilt up or down.

Acceleration up to 500°/s²
The acceleration of the pitch change can reach up to 500 degrees per second squared, indicating how quickly the simulator can achieve the specified pitch speed.

This description outlines the movement and speed capabilities of your simulator's pitch axis.

Yaw ±29.2°, velocity 65°/s, acceleration up to 500°/s²

Yaw ±29.2°
The simulator can rotate left and right by ±29.2 degrees from its neutral position. Yaw refers to the side-to-side movement of the simulator's nose.

Velocity 65°/s
The rate at which the yaw angle changes is 65 degrees per second. This means how quickly the simulator can pivot left or right.

Acceleration up to 500°/s²
The acceleration of the yaw change can reach up to 500 degrees per second squared, indicating how rapidly the simulator can achieve the specified yaw speed.

This description outlines the rotation and speed capabilities of your flight simulator's yaw axis.

Heave 480mm (18.9 in), velocity 435mm/s (17.1 in/s), acceleration up to 5 m/s² (16.4 ft/s²)

Heave 480mm (18.9 in)
This parameter indicates the vertical movement of the simulator up and down up to 480 mm (18.9 inches). Heave simulates the movement of the aircraft during ascent and descent.

Velocity 435mm/s (17.1 in/s)
The speed of vertical movement is 435 mm per second (17.1 inches per second), showing how quickly the simulator can move up and down.

Acceleration up to 5 m/s² (16.4 ft/s²)
The acceleration of vertical movement can reach up to 5 meters per second squared (16.4 feet per second squared), meaning how quickly the simulator can achieve the specified vertical movement speed.

This description outlines the vertical movement capabilities of your simulator.

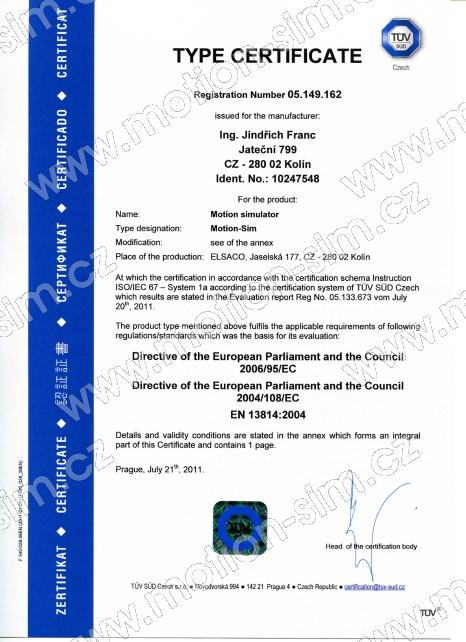

certificates

acessories

You can choose from a wide range of accessories for our roller coaster simulators.

wind blower

Enhance your simulation experience with our special wind blower, designed for racing, flight, truck, and roller coaster simulators. This innovative component blows wind into the driver's face at the speed of the vehicle, adding an extra layer of realism. It’s particularly beneficial in hot weather, providing a cooling effect during intense races, making it an indispensable part of your simulation setup.

Built with a solid metallic construction and long-lasting components, our wind blower is engineered for durability and consistent performance. The USB 2.0 connection via a USB-B connector ensures easy integration with your simulator. It's controlled by MotionPlatform cockpit controller software, which allows for precise adjustments and seamless operation. This wind blower is compatible with most racing games, enhancing the overall immersion and sensory experience.

Please note, this wind blower must be used as part of our simulators and cannot be used alone. Backed by a 12-month warranty, it promises reliability and longevity. Whether you're racing through winding tracks or navigating the skies, our wind blower ensures you stay cool and focused, bringing your simulation experience closer to reality.

features:

  • solid metalic construction and longlife components
  • USB 2.0 connection via USB-B connector
  • Controlled by a MotionPlatform cockpit controller software
  • compatible with most of racing games
  • 12 months warranty
  • Can not be used alone. Possible only for motion simulators MOTION-SIM.

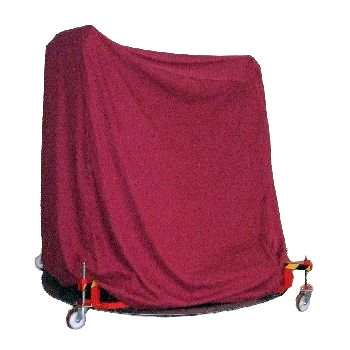

protective coton cover

Our protective cotton cover is a must-have accessory for anyone serious about maintaining their motion simulator. Designed with both functionality and aesthetics in mind, this cover ensures your simulator stays in pristine condition when not in use. Crafted from high-quality cotton, the cover offers a soft, yet durable shield against dust, dirt, and potential scratches that can accumulate over time. Its breathable fabric prevents moisture build-up, which can be crucial in maintaining the longevity of your equipment.

This cover is custom-fitted to hug the contours of your simulator, ensuring a snug fit that provides complete protection. Its sleek design complements the look of your simulator, adding a touch of elegance even when the equipment is not in use. Easy to put on and remove, the protective cotton cover is a practical solution for keeping your simulator in top shape, ready for action at a moment's notice.

Beyond protection, our cotton cover adds an extra layer of care to your investment. By minimizing exposure to environmental factors, it helps preserve the integrity and performance of your motion simulator. Whether you're a professional seeking to prolong the lifespan of your equipment or an enthusiast wanting to maintain the pristine look of your setup, our protective cotton cover is an essential addition to your simulator accessories.

features:

  • high-quality cotton
  • available in different color options
  • durable shield against dust, dirt, and potential scratches
  • compatible with most of racing games
  • placeable directly on the completely folded simulator
